Toky Counter Meter

The intelligent counter is a digital instrument that uses digital circuit technology to count the number of pulses passed in a given time and display the counting result

CI DIGITAL COUNTER METER

  • function: count/ counting length/ counting batch.
  • High speed counting,up to 10Kcps.
  • One batch counting/two groups counting outputs.
  • Voltage input(PNP)and non-voltage input(NPN),software switch.
  • Adjustable pulse width of control signal.
  • Key Lock Function.
  • Optional RS485 communication function.
  • High anti-interference capability.

CL DIGITAL COUNTER METER

  • Two input signal,one is line speed,another one is length.
  • Line speed rate,length rate setting respectively.
  • Various input/output modes,easy for flexible using.
  • High anti-interference capability，highly reliable pulse input circuit design.
  • Counting speed range optional to effectively guarantee the measuring accuracy.
  • RS-485 ModBus-RTU communication function optional.
  • Widely applied in zipper,foodstuff and packing mechanism industries.

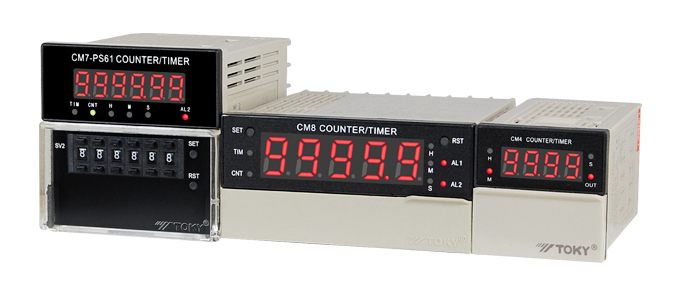

 CM DIGITAL COUNTER METER

  • Thumb switch setting, intuitive and easy to operate
  • CP1/CP2 2 inputs，various input type:A/B/C/D
  • Max 2 output channels(relay or NPN open collector),AL1/AL2
  • 12 output modes:F/N/R/C/L1/K2P/Q/A/D/H/L
  • Power fail memory/timing pausing function.
  • Counting/timing functions switchable by software.
  • 8 timing modes,optional decimal or sexagesimal.

CX DIGITAL COUNTER METER

  • 48*96、36*72、24*48 compact size,saving installation space.
  • One setting output, multiple controlling modes to satisfy customers’ demand
  • Count/timer function switchable.
  • Length counting coefficient setting range 0.001～9999
  • NPN open collector output(CX2C/CX3C)or relay output(CX3/CX8)
  • Key-pressing and external terminal resetting function,high anti-interference capability.

CA-X SERIES ECONOMIC METER/COUNTING INSTRUMENT

  • Switching power supply
  • With counting / counting function
  • Highest pulse input frequency 5kHz
  • Two pulse signal inputs, can be connected to rotary encoder
  • Lock function
  • Various output functions such as F/R/N/C

CA/CA-W DIGITAL COUNTER METER

  • Economical and practical，dual-line 6 digits display.
  • High-performance,micro processor as controlling core
  • High accuracy and anti-interference capability.
  • NPN、PNP can switch the short-circuit pin internally.
  • With F/R/N/C output function.

TCN DIGITAL COUNTER METER

  • Pulse signal is widely applied in automation industry for quantity counting, length measuring and motion analysis,etc. According to the output signals and application features of such sensors, the counter will achieve output when the displayed value reached the setting value, and it realizes the application of length measuring and controlling according to the calculable relation between the pulse and the perimeter. It Can be widely applied in packaging, statistics, section cutting and many other industries.
  • Thumb switch setting preset value,intuitive and easy to operate.
  • Independently display the delay time and with output indicator light.
  • Applied high quality micro processor as controlling core.
  • High measuring accuracy and anti-interference capability.
