Toky Temperature Controller

The intelligent temperature ccontrol instrument is controlled by signal-chip microcomputer and can input varios themocouples, thermal resistance or linear signals

AI208X SERIES INTELLIGENT TEMPERATURE CONTROLLER

  • Easy operation,economy model.
  • Intelligent fuzzy PID algorithm with auto-tuning function.
  • One-press to enter the auto-tuning state, calculate the best controlling state automatically.
  • 1 loop free-setting alarm function.
  • Heating control , compressor cooling control,  heating-cooling control for extruder screw.
  • Use integrated digital tube.

TEY SERIES INTELLIGENT TEMPERATURE CONTROLLER

  • Multi input signal, multi models for option.
  • With measurement display, control output, alarm output, analog output, RS485 communication function.
  • Multi PID control algorithms for option, with self-tuning function
  • Suitable for industrial machinery, machine tools, general measuring instruments and equipment.
  • Short shell, integrated digital tube.

AI808P PROGRAMMABLE TEMPERATURE CONTROLLER

  • 50 programmable segment control function
  • 0.2%FS high-accuracy signal measurement,industrial universal signal input.
  • 2 degree PID arithmetic with positive and negative control output
  • Optional kinds of control output,heating control with inear output.
  • 2 loop alarm,optional kinds of alarm type.
  • Rich size,big LED display
  • RS485 communication,ModBUS-RTU protocol.
  • Industrial level of EMC test and higher reliability

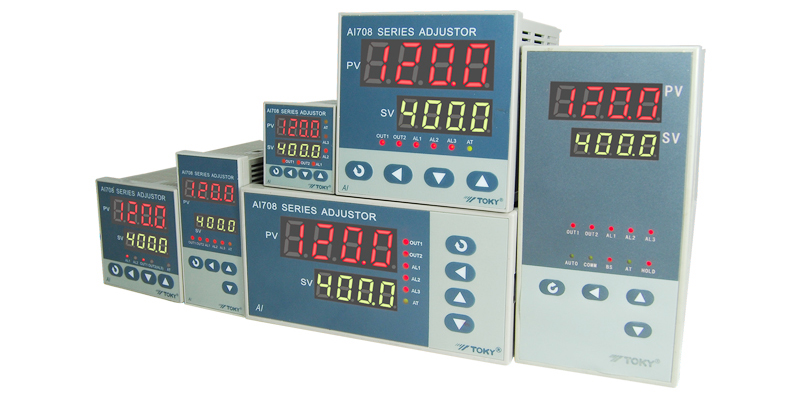

AI708 INTELLIGENT TEMPERATURE CONTROLLER

  • Temperature controller read the actual temperature value according to signal sampling of the temperature sensor ,then compares the actual temperature with the setting temperature,and adopt intelligent PID control algorithm to output an analog or switching value,so that drive relay or high-power actuators to achieve heating or cooling control,and it controls the actual temperature constantly in the setting value range.
  • TC/RTD/analog signal,universal software choose input.
  • 0.3%FS high-accuracy signal measurement.
  • 2 degree PID arithmetic with positive and negative control output.
  • Optional kinds of control output,heating control with linear output.
  • 2 loop alarm,Optional kinds of alarm type.
  • Rich size,big LED display.
  • RS485 communication,ModBUS-RTU protocol.
  • Industrial level of EMC test and higher reliability.

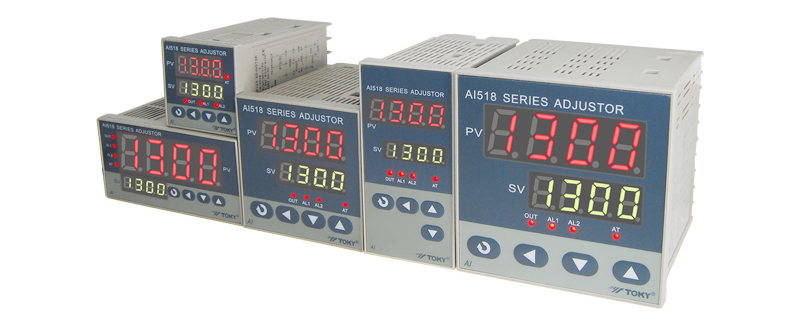

AI518 SERIES TEMPERATURE CONTROLLER

  • TC/RTD/analog signal,universal software choose input.
  • 2 degree PID arithmetic with auto-tuning function
  • Optional various control output and 4～20mA linear output
  • 2 loop alarm,many kinds of alarm type are optional.
  • Rich size,big LED display.
  • RS485 communication,ModBUS-RTU protocol.
  • Industrial level of EMC test and higher reliability.

AI208 INTELLIGENT TEMPERATURE CONTROLLER

  • Easy operation,economic model.
  • 2 degree PID arithmetic with a good control effect
  • A key to enter the auto-tuning state,control state automatically calculate the best.
  • 1 loop alarm function with free setting.

AI108 SERIES INTELLIGENT TEMPERATURE CONTROLLER

  • Simple operation, economical and practical design
  • Adopt intelligent fuzzy PID algorithm and have self-tuning function
  • One-button enters the self-tuning state, and automatically calculates to the optimal control state
  • All the way to set the alarm function freely
  • Output heating control, compressor refrigeration control, heating-cooling control for heating and cooling control of extruder screw

TEW SERIES TEMPERATURE CONTROLLER

  • Easy operation,economic model.
  • TC/RTD universal input.
  • Intelligent PID control and auto-tuning function
  • Optional control output,RELAY/SSR/SCR
  • Optional kinds of series dimension.
  • The new version update 4 digits display to improve resolution.
  • Mature PID algorithm and hardware design, high reliability.

TM THUMB SWITCH TEMPERATURE CONTROLLER

  • Optional TC/RTD universal software input
  • Intelligent PID arithmetic with auto-tuning function
  • Optional kinds of control output
  • 1 loop alarm function
  • Fool-type operation, the temperature can be used in
  • different industries.
  • Thum switch setting is more intuitive and easy to operate
  • Accuracy ±0.5%FS

TH SERIES TEMPERATURE AND HUMIDITY CONTROLLER

  • It has four control outputs for heating, cooling, humidification and dehumidification;
  • Typical accuracy of measurement: humidity ± 2% RH, temperature 0.2 ± ° C;
  • Four temperature and humidity display, resolution is 0.1 °C or 0.1% RH;
  • With PID or ON/OFF heating function (ON/OFF or compressor delay cooling function, ON/OFF humidification and dehumidification function);
  • With RS485 communication function, using Modbus_RTU communication protocol;
  • A high-precision digital temperature and humidity measuring sensor is used in conjunction with the temperature and humidity controller.
